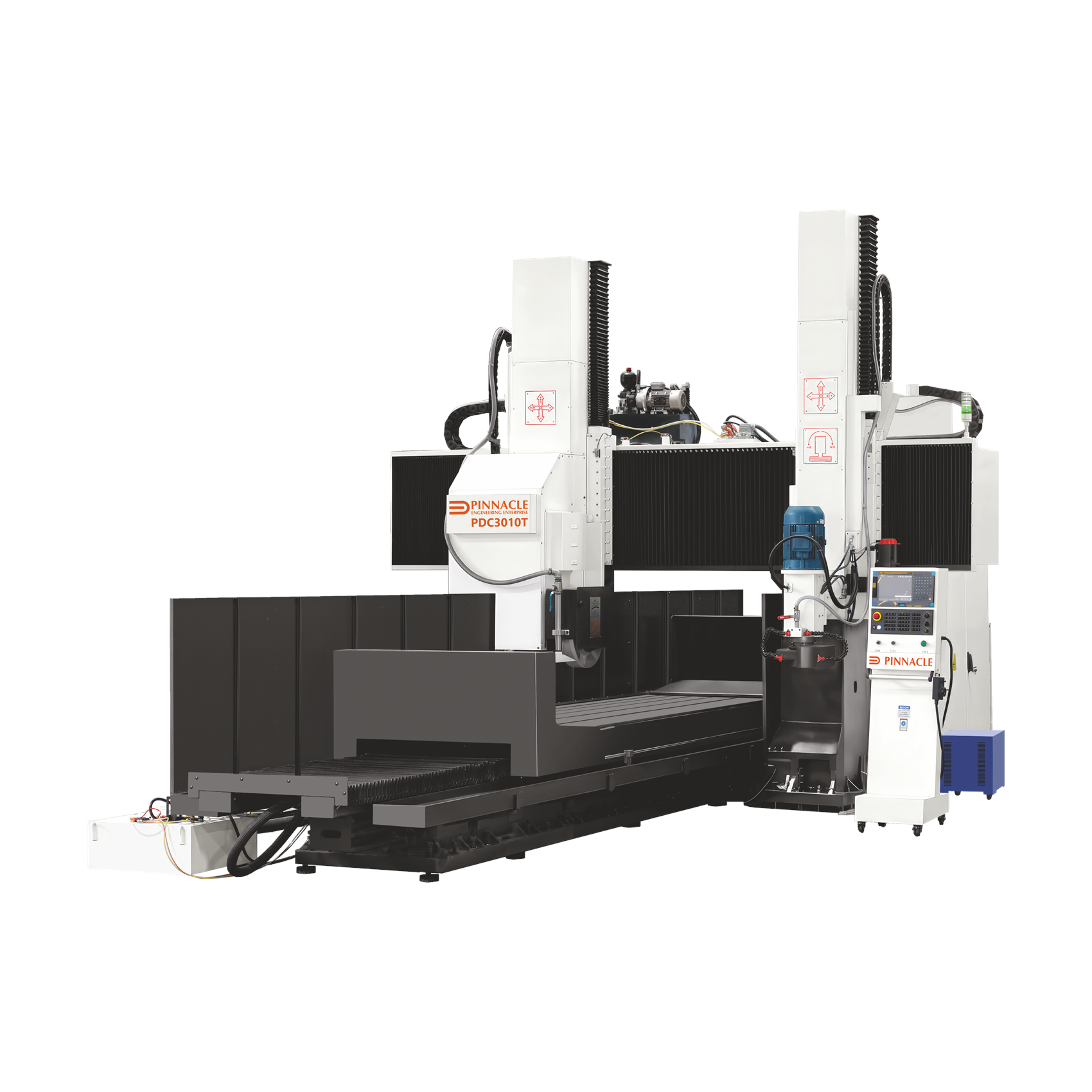

PDC Series - Fixed Beam Double Column Surface Grinding Machine
PDC Series

PDC SERIES

PDC 1510 | PDC 2010 | PDC 3010 | PDC 4010 | PDC 1515 | PDC 2015 | PDC 3015 | PDC 4015
PDC 2020 | PDC 3020 | PDC 4020

BRIEF DESCRIPTION

  • PDC series machines are FIXED BEAM Design DOUBLE COLUMN Surface grinding machines providing Automation in all 3 Axes. Vertical Programmable Auto Down Feed feature containing Auto Grinding cycle with Rough, Finish & Spark Out options on a 7" Colour Touch screen HMI.

  • LONGITUDINAL AXIS i.e. X-Axis is driven by Hydraulic cylinder with END CUSHIONING to ensure effective damping at stroke limits, along with solenoid valve control for smooth and soft table reversals.

  • VERTICAL AXIS i.e. Y-Axis is driven by A. C. Servo Motor through Double ended Precision Ball Screw & Nut on Precision Roller-type L. M. Guide ways.

  • CROSS (BEAM) AXIS i.e. Z-Axis is driven by A. C. Servo Motor through Double ended Precision Ball Screw & Nut on Precision Roller-type L. M. Guide ways.

  • GRINDING SPINDLE-CARTRIDGE (Belt Driven) is assembled with SUPER PRECISION BEARINGS along with Imported GREASE Filled for LIFE for Long trouble-free service.

  • PDC series machines are used for machining large, heavy components requiring tight tolerances and superior surface finish in Aerospace, Automotive, Tool & die, Machine tool building, Grinding Precision guide ways, Base plates, Moulds, and Critical Big precision parts.

DOWNLOAD BROCHURE

PDC SERIES CATALOGUE

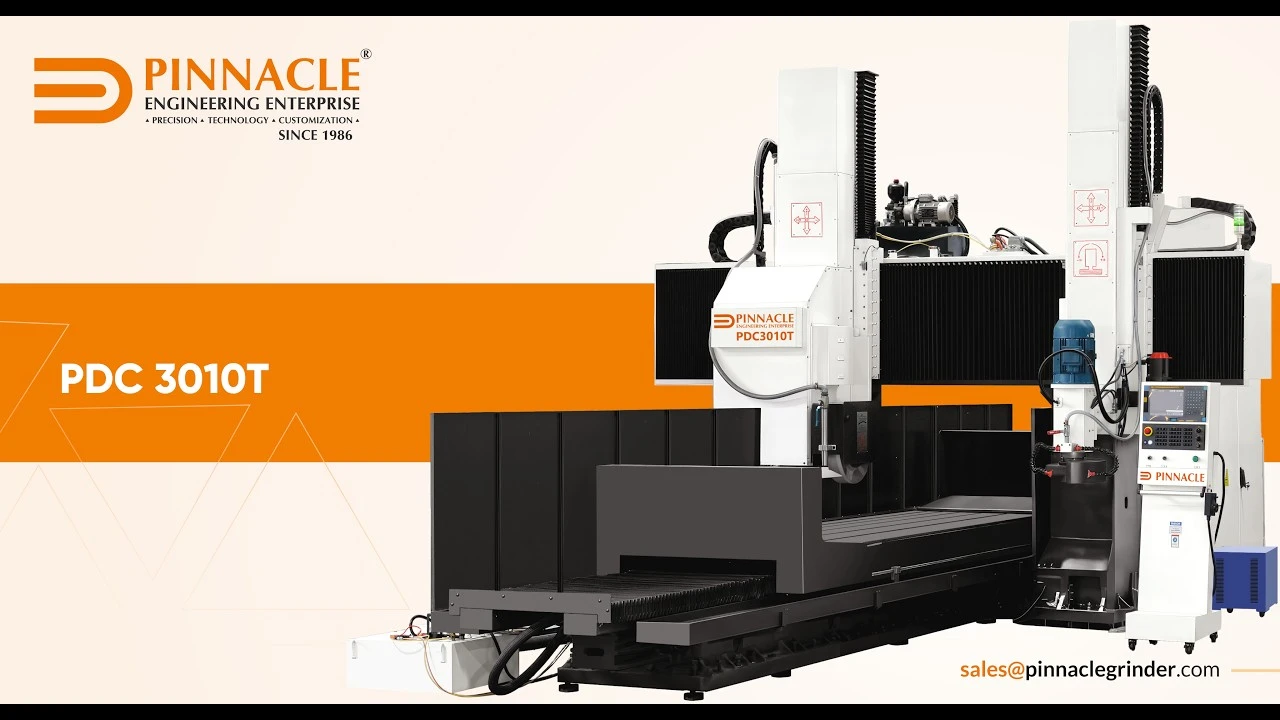

PDC Series Video
WATCH VIDEO (PDC SERIES)
  • Standard & Optional Accessories
  • Technical Specifications
    (PDC 1510 to 1515)
  • Technical Specifications
    (PDC 2015 to 4020)

STANDARD ACCESSORIES

  • Grinding Wheel

  • Grinding Wheel Flange unit

  • PINNACLE Test Chart

  • Operating Instruction Manual

  • Levelling Pads & Bolts

  • Variable Frequency Spindle Drive.

  • LED Machine Lamp

  • Wheel Balancing Mandrel

  • Set of necessary Wrenches

  • Table mounted Wheel Dressing Block

  • Grinding Wheel Clamping & Extraction Bolt

  • Coolant system with necessary attachments

  • Intermittent Concentrated Lubrication in Y & Z Axes.

  • Auto Continuous Lubrication in X Axis

OPTIONAL ACCESSORIES

  • Static Wheel Balancing Stand

  • Magnetic Separator with Coolant system

  • Paper Band Filter with Coolant system.

  • Dynamic Auto Wheel Balancing. (CNC)

  • Oil Chiller for Hydraulic Powerpack

  • EXTRA Wheel Flange unit.

  • EXTRA Grinding wheel.

  • Electro Permanent Magnetic chuck (Safety Purpose)

  • Electro Magnetic chuck with Controller.

  • Air Gap & Crash Control (CNC).

  • Auto Parallel Dressing with Auto Compensation.

  • EXTRA Job Height up to 950 mm.

  • Coolant Chiller for Coolant system.

  • CNC Control system (FANUC / SIEMENS)

  • Vertical Grinding Head (5° Division) (±90°)

  • Other possible Customization.

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.
** Photographs are shown with Optional accessories.

TECHNICAL SPECIFICATIONS (PDC 1510 to PDC 1515)

DESCRIPTION UOM PDC 1510 PDC 2010 PDC 3010 PDC 4010 PDC 1515
Max. Job size that can be Ground (L x W)* mm 1500 x 1000 2000 x 1000 3000 x 1000 4000 x 1000 1500 x 1500
Max. Job height with new wheel on EMC* mm 400
Max. Weight carrying capacity of the Table* Kgs. 2500 3500 5500 7500 4500
Table Speed (Infinitely variable)* m/min 5 to 25
Vertical feed graduation (MPG)* mm 0.001
Max. Power Cross Traverse (Infinitely Variable)* Mm/min 1500
Size of Grinding Wheel (O.D. x Width x I.D.)* mm 500 x 100 x 203
Grinding Wheel Spindle Motor (A.C. Induction)* H.P. / kW 15 / 11 20 / 15 25 / 19 20 / 15
Hydraulic Powerpack Tank Capacity* Litres 400 600
TOTAL Power (3 Phase / 415 Volts / 50 Hz)* H.P. / kW 15 / 11 20 / 15
Approx. Gross Weight of machine* Kgs. 20,000 22,000 25,000 29,000 25,000
Working Dimensions of Machine (L x W x H)* mm 7500 x 4400 x 4000 9000 x 4400 x 4000 10,000 x 4400 x 4000 12,000 x 4400 x 4000 7500 x 4900 x 4000

TECHNICAL SPECIFICATIONS (PDC 2015 to PDC 4020)

DESCRIPTION UOM PDC 2015 PDC 3015 PDC 4015 PDC 2020 PDC 3020 PDC 4020
Max. Job size that can be Ground (L x W)* mm 2000 x 1500 3000 x 1500 4000 x 1500 2000 x 2000 3000 x 2000 4000 x 2000
Max. Job height with new wheel on EMC* mm 400
Max. Weight carrying capacity of the Table* Kgs. 5500 7500 9500 6500 8500 10,000
Table Speed (Infinitely variable)* m/min 5 to 25
Vertical feed graduation (MPG)* mm 0.001
Max. Power Cross Traverse (Infinitely Variable)* Mm/min 1500
Size of Grinding Wheel (O.D. x Width x I.D.)* mm 500 x 100 x 203
Grinding Wheel Spindle Motor (A.C. Induction)* H.P. / kW 20 / 15 30 / 22.5 25 / 19 30 / 22.5
Hydraulic Powerpack Tank Capacity* Litres 600
TOTAL Power (3 Phase / 415 Volts / 50 Hz)* H.P. / kW 20 / 15 25 / 19 30 / 22
Approx. Gross Weight of machine* Kgs. 27,000 30,000 35,000 32,000 35,000 42,000
Working Dimensions of Machine (L x W x H)* mm 9000 x 4900 x 4000 10,000 x 4900 x 4000 12,000 x 4900 x 4000 9000 x 5600 x 4000 10,000 x 5600 x 4000 12,000 x 5600 x 4000
